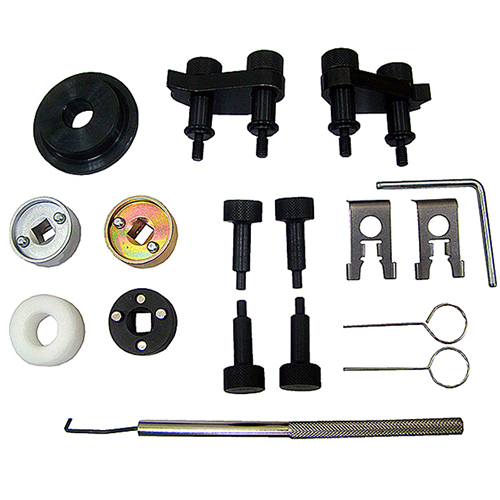

Use for correct the camshaft and crankshaft timing position.
Four-cylinder EA888 petrols: 1.8 R4 16v TSI/TFSI, 2.0 R4 16v TSI/TFSI
2006~2013 VAG series TSI, TFSI EA888 engine(1.8L, 2.0L).
OEM Tools:
T10352, T10352/1, T10352/2, T10368, T40196, T10354, T10060A, T40011, T40265, T40267, T40271
1.8 R4 16v TSI/TFSI (EA888)
Applications:
Audi TT Mk2 (8J), Audi 8P A3, Audi B7 A4, Audi A4 (B8), Audi A5
SEAT Leon Mk2 (1P), SEAT Altea XL
Škoda Yeti, Škoda Octavia Mk2 (1Z, Ming Rui), Škoda Superb Mk2 (3T)
VW Jetta Mk5/Sagitar, VW Passat B6, VW Passat CC
2.0 R4 16v TSI/TFSI (EA888)
Applications:
VW Golf Mk5 GTI (North American markets only)
VW Golf Mk6 GTI (North American markets only)
VW Jetta Mk5, VW Jetta Mk6, VW Passat B6, VW CC, VW Scirocco, VW Golf Mk6 GTI, VW Scirocco, VW Passat B6, VW CC
Audi A3 (8P), Audi A3 Cabriolet, Audi TT, Audi A4 (B8), Audi Q5, Audi A5, Audi Q5, Audi TT Mk2 (8J), Audi Q3
Škoda Superb Mk2 (3T), Škoda Octavia
SEAT Altea Freetrack, SEAT Leon FR, SEAT Exeo
Engine Code:
BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJEB, CJBA, CJSB.
