TATHT8011 includes camshaft setting plate, which locates at the rear of the camshaft to 'lock' in the timed position and the special tensioner adjuster.
Note: TDC position tool on Fiat twin cam engine is established using (A), (A) requires a suitable dial test indicator such as AK9634M.
In addition, a flywheel holding tool is required to 'lock' the crankshaft whilst releasing/tightening the crank pulley bolt. The crank pulley must be removed in order to remove the timing belt. The flywheel holding tool is dependent upon model.

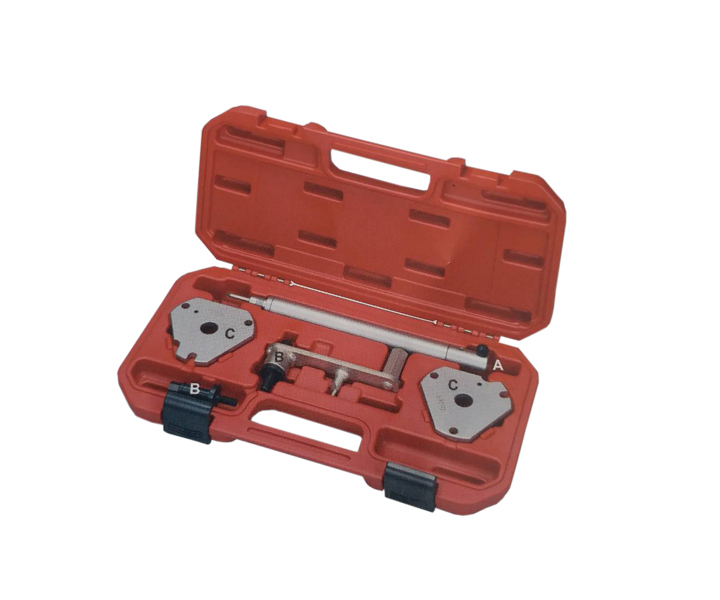

| Item | Description | OEM |
| A | TDC Position Tool | 1 895 443 000 |
| B | Tensioner Adjuster | 1 860 876 000 |
| C | Camshaft Setting Plate ( Inlet and Exhaust ) | 1 860 874 000 |
Application:
Fiat 1.6 16v twin cam petrol engine (95-) in:
Fiat: Brava, Bravo, Marea, Marea Weekend, Multipla, Palio, Stilo
Engine Code:
178B3.000, 182A4.00, 182A6.000 & 182B6.000
