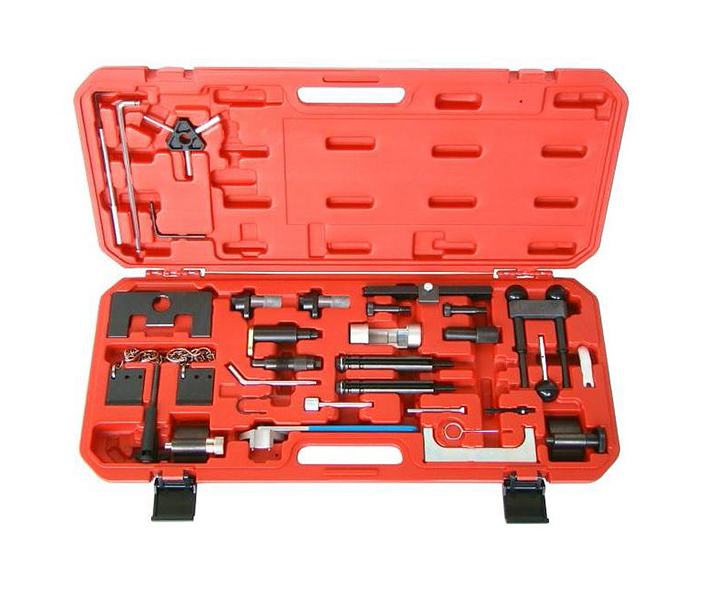

This new kit of twelve tools is required for petrol and diesel engine service including timing belt replacement on recent models and also older 1.9D models from 1976.
Models:
AUDI: A4, A6, A8, A11 YOAD (97-04)
VW: Passat: (98-04)
Engines codes:
AFB, AKE, AKN AYM, BAU, BCZ, BDG, BDH, BFC.
A) Tensioner Socket
B) Crankshaft Locking Pin
C) Fixing Gauge for Camshaft
D) Injection Pump Locking Pin
E) Tensioner Locking Pin
F) Injection Pump Locking Pin
G) Tensioner Setting Tool
H) Camshaft Locking Tool
I) Crankshaft Pulley Setting Tool
J) Camshaft Setting Plate
K) Camshaft Setting Bar
L) M5×55 Stud and Nuts
M) Tensioner Locking Pin
N) Injection Pump Timing Pin 15.4 mm
O) Camshaft Adjustment Tool
P) Crankshaft Locking Pin
Q) Fixing Pin
R) Camshaft Aligning Tool
S) Crankshaft Pulley Locking Tool
U) Front End Support Guides
V) Locking Pin (4, 7, 8mm)
W) Chain Tensioner Retainer
X) Tensioner Pulley Locking Tool
Y) Tensioner Pulley Adjustment Tool
Z) Auxiliary Drive Belt Tensioner Locking Pin
AA) Tension Pulley Holding Wrench |
3078
3242 | T30052
T30094 | 3458
3359
T40011
3359 | T20102 | U40074
23-058 | T10008 | 310-084
T10016 | T10074 | MP1 312
23-059 | T10050 | 310-085
T20038 | T10098 | MP1-1312
T10008 | 2065A | U40021
T10092
T40011
2064 | U20003
3418
T10121
T10123
T10100
3369
3366 |
