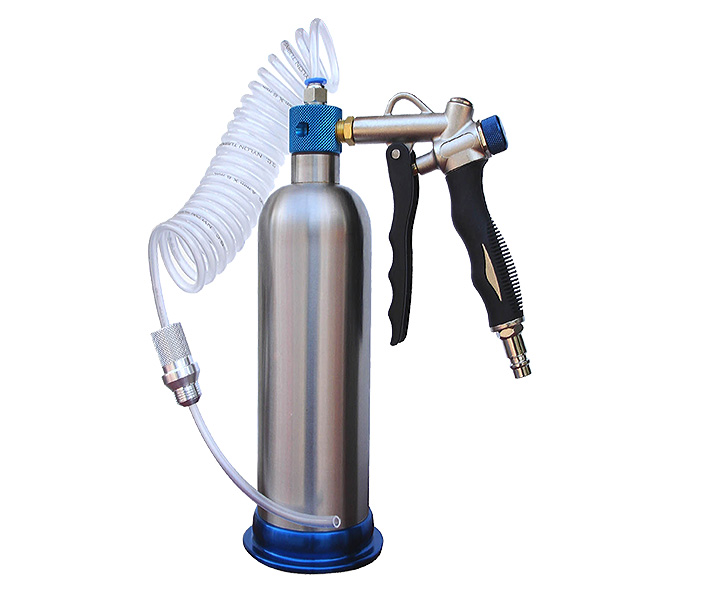

Three-Way Catalytic Converter Carbon Washing Kit - Universal For All Model

TATCH3121

Item Description

Stainless canister for long life.
Aluminum base stand for tools placed more stable.
Working pressure range: 3 bar ~ 7 bar (45Psi ~ 100 Psi)
Max capacity: 650 c.c. (22 FL. OZ.)
4x6 Nylon hose x 1M

INSTRUCTIONS:
  • Three-Way Catalytic Converter Carbon Washing Kit
  • Fill cleaning reagent into the canister about 200 c.c. and lock the cap.
  • Use the safety machine elevates the vehicle and pick up the tools at appropriate position to near the O2 sensor.
  • Disassemble the O2 sensor nut and lock the adapter onto the O2 sensor female nut.
  • Put the clean pipe through the adapter inside diameter into catalytic converter, connect air power.
  • Push the trigger. Then cleaning reagent will to become bubble filled into the catalytic converter.
  • When the cleaning liquid spraying completes, remove the lead hose and take out the adapter.
  • Pick up the tools and lock the O2 sensor nut.
  • Wait about 5 minutes after to start the engine, then catalytic converter carbon liquid will outlet follow the exhaust pipe. The cleaning working will be finished.

Three-Way Catalytic Converter Carbon Washing Kit

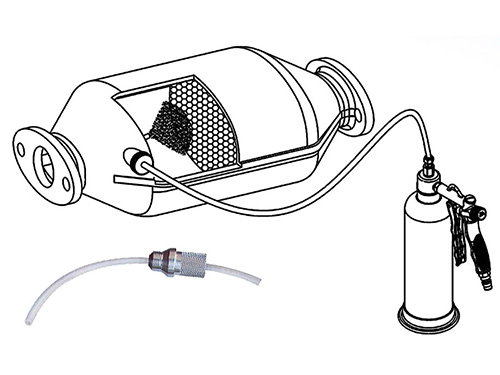

Put the clean pipe through the adapter inside diameter into catalytic converter.
