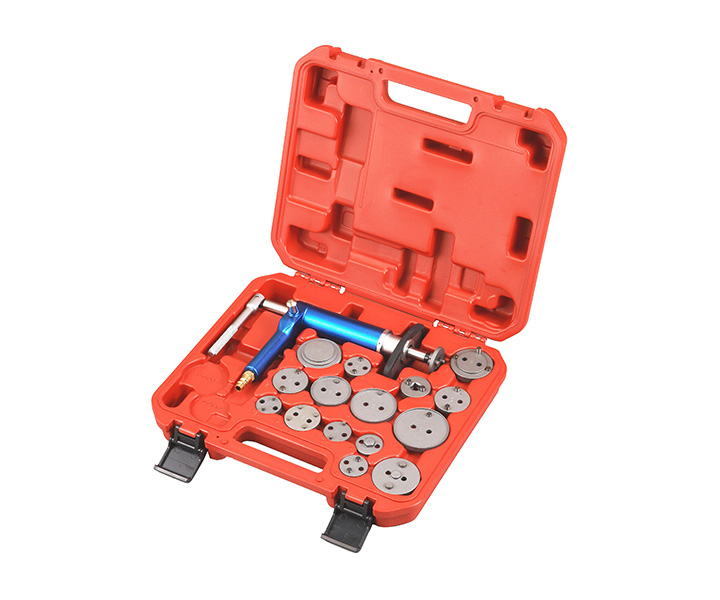

Pneumatic winder allows left and right handed winding for easy return of the brake piston into the caliper to provide clearance for new brake pads. Manufactured from aluminium with black anodized finish and standard 1/4" air inlet adaptor. 15 adaptor plates fit most popular vehicles.
Air Pressure: The range of normal using pressure is 5~8 kg/m2; maximal using pressure is 14 kg/m2.
Suitable for Citroen, Audi, Fiat, Ford, Isuzu, Honda, Jaguar, BMW, Nissan, Mitsubishi, VW, SAAB, Mazda, Toyota...etc.
Application:
A) Choose an adapter suitable for working on the brake caliper piston. Fit it onto magnetic adapter. Connect the tool to the compressed air line, making sure that it does not exceed 8 bar pressure.
B) Press the release button and operate lever to move the push spindle forward or backward and fit the tool into the caliper.
C) Press button and rotating lever to rotate the brake caliper piston.
D) After pushing the piston backward, press button and pull lever to move the push spindle backward, releasing the tool from the caliper.
• Designed for pushing back and wind back piston.• Provides pneumatic body to increase work efficiency.• Provides right / left helix bolt. • Universal application.• No direction limitation, rotating lever work both left/right.
