Applications:Checking engine oil pressure in both cars & trucks
Features:
Our product is Diaphragm pressure gauge without any cut teethes of gear, therefore we have below special features:＊Accurate
＊Shock resistant and durable
＊Sudden pressure endurable without oil-filled inside gauge
＊Complying with ANSI/ASME B40.100 standard
＊CE Certified
* ISO 9001 Quality System
＊Quality Assurance Team monitoring
＊Made in Taiwan
Specifications:
＊Dial Diameter：2.5 inch
＊Pressure Range： 0~300psi/ 0~21kg/cm²
＊Housing：Black-Plated Steel
＊Ring：Chrome-Plated Steel
＊Lens：Acrylic
＊Pointer：Flat Black-Plated Aluminum
＊6ft（1.8m） of oil proof hose with 1/8"NPT

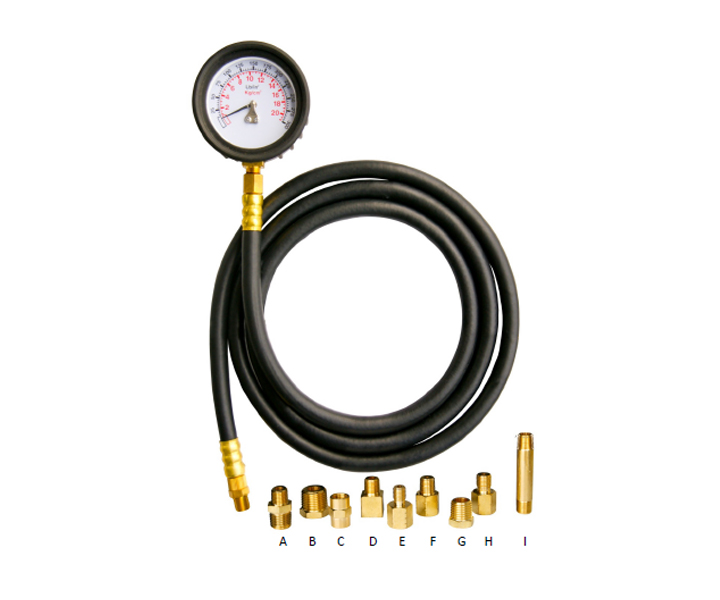

＊Also including 9 pieces adapters ( see the photo below )
＊Rubber Protector
＊Accuracy：±3%~±2%~±3%
Packing Detail
＊Blow Case
＊Q'TY：20 pcs/ outer ctn, 5 pcs/ inner box
＊N.W.：24 KGS
＊G.W.：25 KGS
＊CUFT：3.65
| A | 1/8" / 1/4" NPT |
| B | 3/8" / 1/8" NPT |
| C | 1/8"NPT |
| D | 1/8"NPT |
| E | M8x1/8"NPT |
| F | 1/8"NPT |
| G | 1/4" / 1/8" NPT |
| H | M10x1/8"NPT |
| I | 1/8"NPT |
