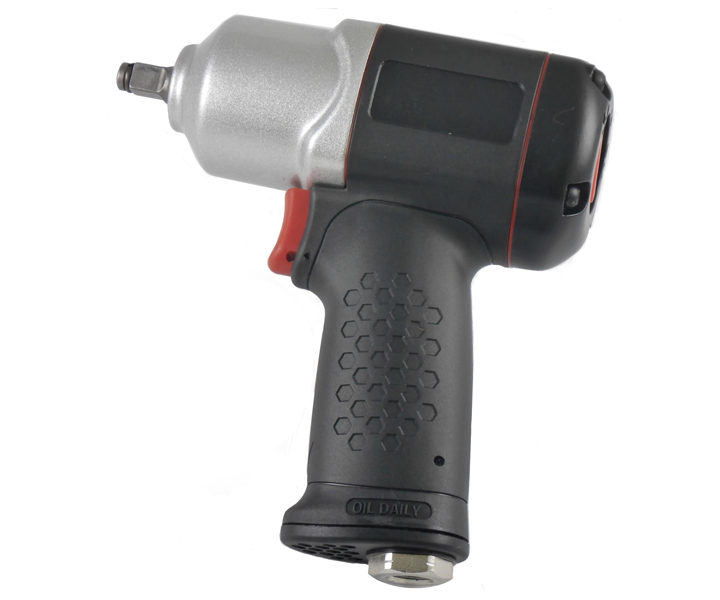

Composite body with alum. clutch housing and rear plate.
3 steps forward and full reverse.
360° swivel air inlet.
Lubricator fitting for impact clutch.
Vane with spring mounted for start smooth.
Impact Type: Twin Hammer
Anvil Size: 3/8 inch
Free Speed: 8,000 rpm
Working Torque: 400 ft-lb @5 Sec./ 542 Nm @5 Sec.
Max. Torque: 450 ft-lb @15 Sec. / 610 Nm @15 Sec.
Product Weight: 1.3 kg / 2.8 lb
Product Length: 160 mm / 6.29 inch
Air Consumption: 129 l/min / 4.5 cfm
Air Inlet Pressure: 6.3 kg/cm2 / 90 psi
Air Inlet Size: 1/4 inch
Air Hose I.D.: 3/8 inch
Exhaust Type: Handle Exhaust
Sound Pressure: 89.5 dB(A)
Vibration Level: 4.7 m/s2
