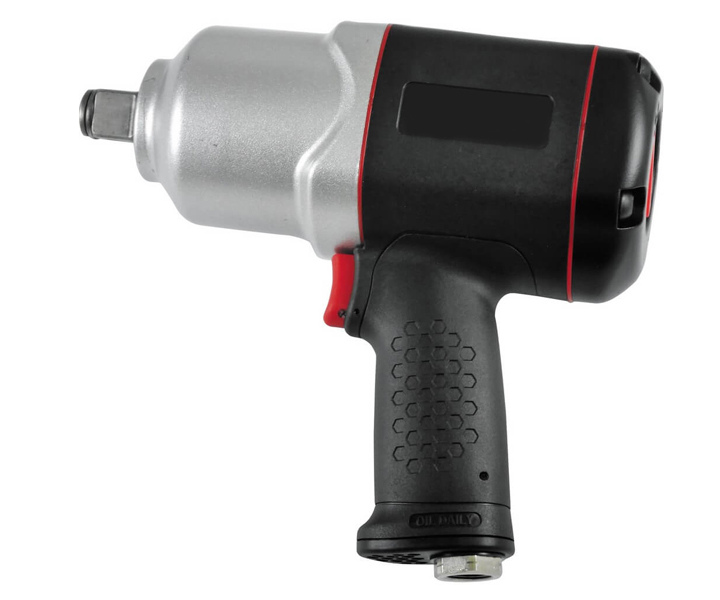

Composite body with alum. clutch housing and rear plate.
3 steps forward and full reverse.
360° swivel air inlet.
Lubricator fitting for impact clutch.
Vane with spring mounted for start smooth.
Impact Type: Twin Hammer Anvil Size: 1 inch
Free Speed: 5,500 rpm
Working Torque: 1,200 ft-lb @5 Sec. / 1,627 Nm @5 Sec.
Max. Torque: 1,500 ft-lb @15 Sec. / 2,033 Nm @15 Sec.
Product Weight: 3.8 kg / 8.3 lb
Product Length: 230 mm / 9.10 inch
Air Consumption: 198 l/min / 7.0 cfm
Air Inlet Pressure: 6.3 kg/cm2 / 90 psi
Air Inlet Size: 3/8 inch
Air Hose I.D.: 3/8 inch
Exhaust Type: Handle Exhaust
Sound Pressure 96.5 dB(A)
Vibration Level 8.6 m/s2
