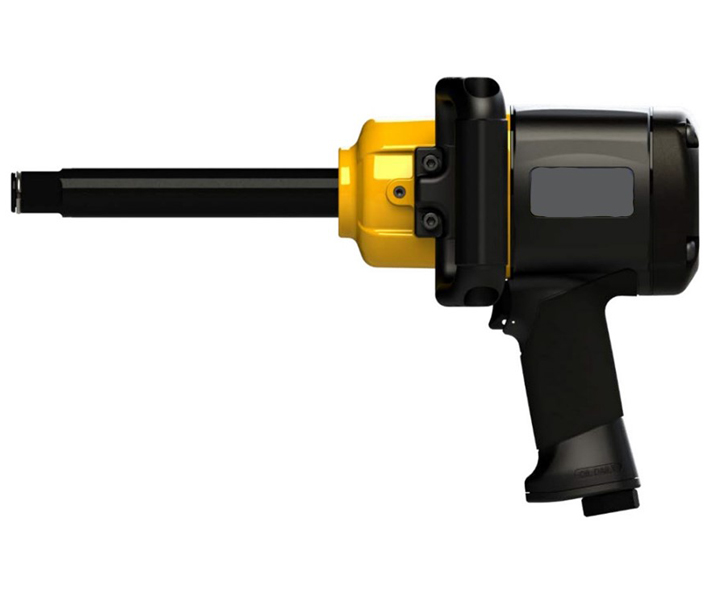

Composite body with Magnesium clutch housing and rear plate.
3 steps forward and full reverse.
Lubricator fitting for impact clutch.
Vane with spring mounted for start smooth.
Material: anvil-SNCM616 , Cylinder-FCD45.
Impact Type: Twin Hammer
Anvil Size: 1 inch
Free Speed: 5,500 rpm
Working Torque: 2,000 ft-lb / 2,700 Nm
Max. Torque: 2,200 ft-lb / 2,970 Nm
Nut-Busting Torque: 3,982 ft-lb / 5,400 Nm
Product Weight: 5.7 kg / 12.54 lb
Product Length: 417 mm /16.41 inch
Air Consumption: 212 l/min / 7.5 cfm
Air Inlet Pressure: 6.3 kg/cm2 / 90 psi
Air Inlet Size: 1/2 inch
Air Hose I.D.: 1/2 inch
Exhaust Type: Handle Exhaust
Sound Pressure: 96.5 dB(A)
Vibration Level: 8.6 m/s2
