For adjustment and arresting of the twin camshaft on petrol engines:
- Engine Timing: checking and adjustment.
- VANOS Unit: removal, installation and alignment.
Suitable for the following applications:
Camshaft installation and removal as well as removal and installation of the inlet camshaft and carrier assembly / valvetronic System.
Easily accessible operating instructions including cross references to original part numbers.
Spare parts optionally available

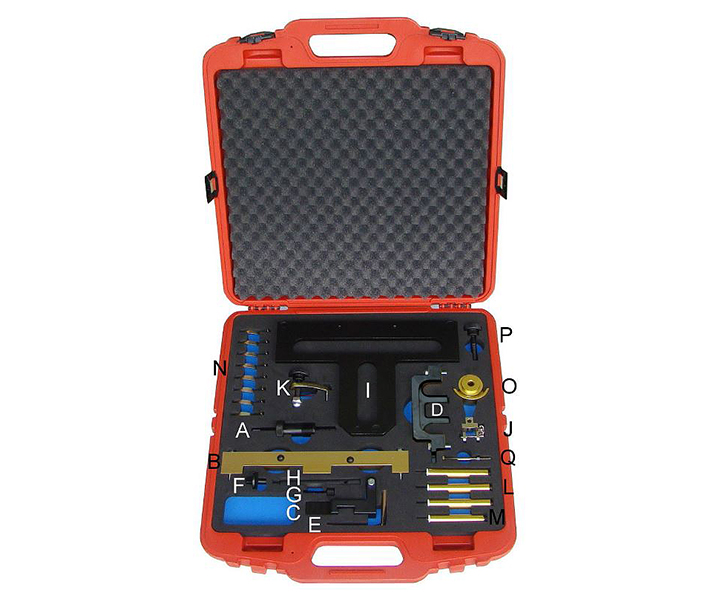

Clear arrangement of tools in high-quality plastic case with soft foam insert.
BMW N46 Engine: E87 118i, 120iBMW N42 Engine: E46 316i, 316ti, 318tiBMW N46 Engine: E90/E91 318i, 320i
A
B
C
D
E
F
G
H
I/L/M
J/Q
K
N
O/P |
Pre-tensioning Tool
Sensor Gear Alignment Tool
Inlet Camshaft Alignment Tool
Exhaust Camshaft Alignment Tool
Flywheel TDC Locking Pin
Camshaft Turning Tool
Exhaust Camshaft Alignment Tool Screw
Flywheel Timing Pin
Camshaft / Carrier Bracket Mounting Fixture
Torsion Spring Remover / Installer
Inlet Camshaft Securing Tool (Rear)
Intermediate Lever Clamp Set
Inlet Camshaft Securing Tool (Front) |
11 9 340
11 9 350
11 9 292
11 9 291
11 9 190
11 9 270
11 9 293
11 5 120
11 3 320
11 9 390
11 9 301
11 9 310
11 9 302 |
