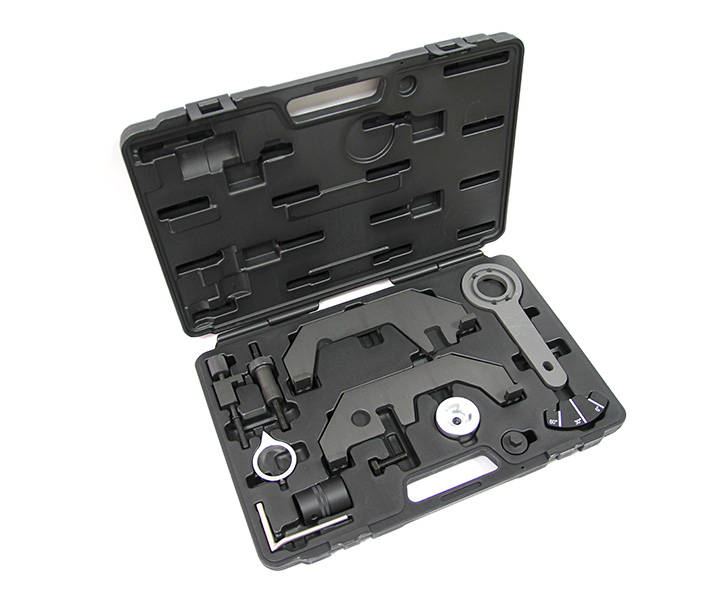

An essential timing chain tool kit for 3.6 4.0 4.4 4.8 6.0 V8 engines. Developed for BMW N62 V8 and N73 V12 engines. (OLD ITEM: TATHT397)
This kit holds the valve timing whilst maintaining the correct timed position of the Camshafts and Crankshaft.
Using our own innovative design this kit holds the tools to lock and hold the camshaft and crankshaft securely in their correct timing positions.
A. Camshaft Alignment Tool - Inlet Camshaft Gauge (11 9 461)
B. Camshaft Alignment Tool - Exhaust Camshaft Gauge (11 9 462)
For locating camshaft in TDC position when checking or adjusting camshaft timing.
Applicable: BMW N62, N62TU, N73, E53, E60, E61, E63, E64, E65
C. Bracket with Bolt (11 9 463)
When checking or adjusting camshaft timing.
Applicable: BMW N62, N62TU, N73
D. Camshaft Alignment Pin (11 9 190)
Used to lock the flywheel in TDC position.
Applicable: BMW N40, N42, N62, N62TU, N73
E. Chain Tensioner (11 9 340)
For tension primary chain and Short format for late model new generation engines.
Applicable: BMW N40, N42, N45, N46, N52, N62
F. Left Cylinder Head Socket (11 7 270)
Removal and installation the left head socket.
Applicable: BMW N73
G. Gasket & Bolt (11 9 452)
Applicable: BMW N62, N62TU, N73
H. Fixing Crankshaft Wrench (11 9 451)
Works with 27mm Socket when removing or installing crankshaft
Applicable: BMW N62, N62TU, N73
I. Angle Indicator (11 9 453)
Indicates to the angle on angle position gauge and uses 27mm Socket to fix this tool.
Applicable: BMW N62, N62TU, N73
J. 27mm Socket (11 9 454)
Applicable: BMW N62, N62TU, N73
K. Gauge Angle Position (11 3 460)
Graduated disk for mounting on counter holder on for torque central bolt.
Applicable: BMW M60, M62, M73, N62, N62TU, N73
Kit Includes 11 3 460, 11 7 270, 11 9 190, 11 9 340, 11 9 451, 11 9 452, 11 9 453, 11 9 454, 11 9 461, 11 9 462, 11 9 463
Application petrol engines fitted to 540i, 545i, 550i, 645i, 650i, 735i, 740i, 745i, 750i, X5. Applicable: 2001~2009 3.6~4.8 Liter V8 N62 with SFI fuel injection, Double-VANOS, and Valvetronic 2003~2009 6.0 Liter V12 N73.
